Exhaust Adapter D-Series (HF-Spindle)

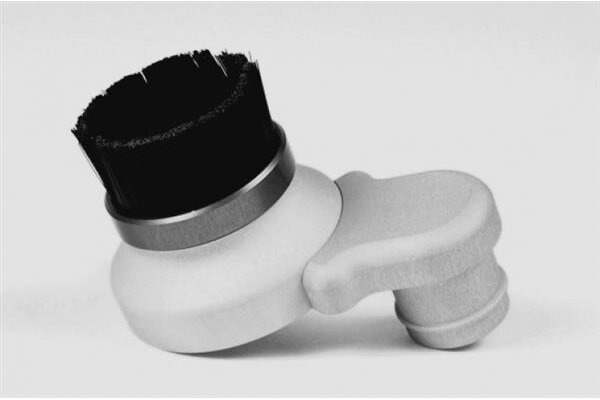

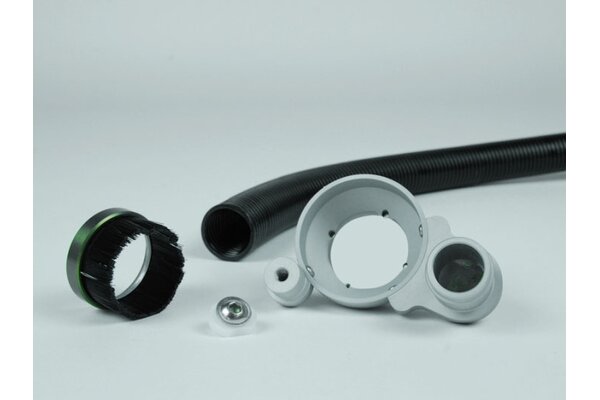

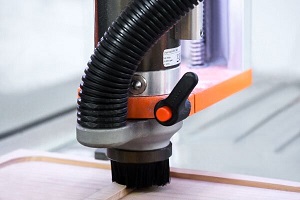

The Exhaust Adapter is constructed as a ring nozzle, which encompasses the milling cutter completly and reliably extracts the dust. The detachable ring nozzle enables the change of a tool while the Vacuum Adapter is attached. The cup brush provides a good sealing of the workpiece and recedes in the case of contact with the clamping bars.

The enclosed tube can be connected, for example, to an commercially available vacuum cleaner. This can be accomplished with the use of the appropriate Air Regulator.

The use of the Exhaust Adapter together with the Automatic Tool Changer is not possible.

Suitable for:

• STEPCRAFT HF-Spindle
• Use with STEPCRAFT D-Series

Scope of Delivery:

• Exhaust Adapter, fully assembled and suitable for HF-Spindle
