2nd Layer Module

The 2nd Layer Module extends the connection possibilities of the Switch-Box. Three more tools can be connected to the Switch-Box, so the device can operate five tools in total. As an example the laser for Engraving can be connected and switched, too. The circuit board has to be mounted into the housing of the controller box of the Switch-Box (plug & play).

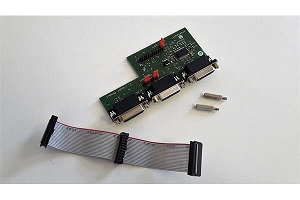

Scope of Delivery:

• 1x 2nd Layer Module (circuit board)
• 1x Connection Cable (flat conductor 10-pin)
• 2x M3 Spacer
• 1x Assembly Manual
