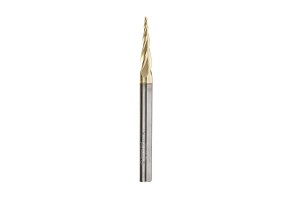

Specially designed for 2D and 3D CNC profiling and carving in plastic, aluminum and wood with CNC machines. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary ZrN coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction and heat buildup.
Some of Amana Tool carving tools have a very small diameter therefore any material chip-loads need to reflect that small size. It can however withstand RPMs up to 60,000 RPMs. A directed air-blast to keep chips away and cool tool and workpiece is always welcome.
For en optimal oversigt over alle vores ende fræsere og de materialer, der skal behandles, se tabellen på vores hjemmeside.
- A perfect bit for 3D carving
- Precision 2D and 3D large scale carving
- Great for deep profiling
- Dimensional signage
- 3D millwork
- 2D and 3D contouring, profiling, modeling and pattern making for cabinetry, sign making, furniture making and jewelry mold making
- Perfect for model-makers on large 3D milling profiles in abrasive EPS foam and other materials
Fremragende til skæring:
- Acrylonitrile-Butadiene-Styrene (ABS)
- Ethylene-vinyl Acetate Foam (EVA)
- Expanded Polypropylene (EPP)
- Expanded Polystyrene Foam (EPS)
- Extruded Polystyrene Foam (XPS)
- Fiberglass PCB Board
- High Density Polyethylene (HDPE
- 20lbs High Density Urethane (HDU)
- MDF / HDF
- Ikke-jernholdige metaller
- Phenolic Composites
- Poly (methylmethacrylate) (PMMA)
- Polyethylene Foam
- Polyurethane Foam
- PVC Foam Board
- Tooling Board
- XPE (Cross Linked Polyethylene) Foam
Benefits of Zirconium Nitride (ZrN) Coating:
- Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting.
- Have the tendency to run/spin much faster than an uncoated tool.
- Optimized flute geometry and low Total Indicated Runout (TIR) guarantees clean cuts, essentially eliminates sanding and reduces chatter (where the machine or work piece vibrates) under high chip loads (when used with low TIR spindles).
- High flute volume supports high feed rates and chip loads.
- High aspect ratio for single pass deep-reach cutting
- Flute geometry optimized for cutting sign foam, sign board, hardwoods, thermoplastics and phenolic composites.
In a milling application, all plastics tend to behave differently so attention must be paid first and foremost to heat input, as that greatly impacts surface finish and chip control. Suggested starting spindle speed might be 18’000 RPM, there needs to be some experimenting on the part of the programmer to best find an acceptable finish.
- Retning: POS
- Diameter Tip: 1,5 mm
- Radius: (0,75 mm)
- Angle: 5,4°
- Cutting Height: 25 mm
- Skaft: 6 mm
- Overall Length: 75 mm
- Type: Ball Nose, ZrN
- Flutes: 4
